The VenaPulse® Device

Lending an extra hand for venous exams

The VenaPulse® Hands-Free Augmentation Device provides a portable and ergonomic advantage for vascular technologists performing venous insufficiency exams. The device rapidly inflates and deflates tourniquet pressures with a foot switch giving your hands more freedom and facilitating the intensive task of vascular imaging.

Get consistent, reproducible augments without the bending, twisting, and repetitive motions that may lead to injury. The VenaPulse® device allows for quicker and more comfortable venous testing for both vascular technologists and patients. Save time (and your back) as you efficiently scan!


Portable

Even in clinics with multiple exam rooms, the self-contained VenaPulse® device is easily carried to wherever it’s needed. Its compact, integrated design provides vascular technologists with simplicity and convenience.


Efficient

The VenaPulse® device’s primary purpose is to increase efficiency in vascular labs by eliminating the need for a second technologist to do hand augmentations. By using the foot switch to perform augmentations, one tech is all that is needed to perform a venous exam. Furthermore, the device controller’s bilateral capability can make an exam fly by.

Nurse carrying VenaPulse Device with logo

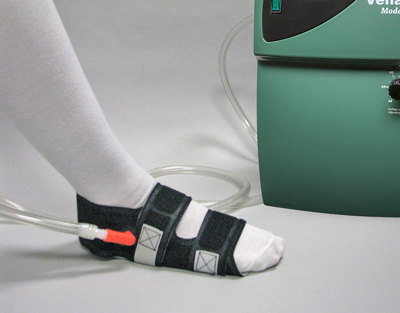

The VenaPulse® Foot Inflation Cuff

Our patented foot cuff is the ONLY inflation cuff that is specifically designed to rapidly empty the foot veins. It allows unobstructed imaging of the entire limb and the foot cuff alone can identify valvular reflux up through the sapheno-femoral junction in most patients.


Indications for use

  • Distal augmentations
  • Proximal augmentations
  • Vein mapping
  • Locating suitable distal vessel for bypass
  • Quantification of venous flow
  • Reflux measurements of specific venous valves
  • Inflatable tourniquet
Patented Foot Inflation Cuff

 Reproducible Augmentations

By generating static, tourniquet pressure to limbs of patients undergoing vascular testing, a vascular technologist can perform exams without worrying about variance in augmentation pressure. Our specialized rapid inflation cuffs allow every augmentation to yield predictable results. Technologists also have the option of placing the calf inflation cuff anywhere along the patient’s leg.

The VenaPulse® device’s tourniquet pressure is reached very rapidly and the tourniquet cuff is deflated very rapidly: approximately 300 millisecond rise and fall times. Inflation and deflation can be controlled either with a foot switch or with a manual switch. The recommended pressure is between 80 – 120 mmHg. Safety alarms are in place to ensure safe operation.

VenaPulse Device with rapid inflator calf cuff and foot switch

 Clinically Evaluated

The VenaPulse® device is an effective replacement for manual augmentations: “Prospective comparison of the pneumatic cuff and manual compression methods in diagnosing lower extremity venous reflux” S.K. Kakkos, et al. Vascular and Endovascular Surgery, Vol. 43 No. 5: pp. 480-484


Built-in Safety

Built-in safety alerts ensure safe operation of the VenaPulse® device. In the event of excessive cuff pressure, internal mechanical or electronic failures, an alert will sound, the cuff will deflate, and the front display panel will indicate REPAIR.

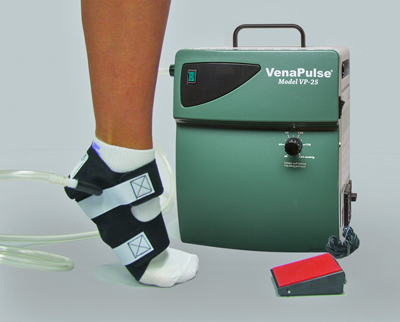

VenaPulse Device with patented rapid inflator foot cuff

 Contraindications

  • Acute deep vein thrombosis
  • Thrombophlebitis
  • Hot, swollen and tender leg

Accessories

Each VenaPulse® pneumatic compression system comes with the following accessories needed to get started right away:

  • Foot switch
  • Two inflation cuffs (one calf cuff and one patented foot cuff)
  • Two tubing sets
  • Power cord
  • Operation & service manual

*Please note that patients may be in a standing, sitting, or reverse Trendelenburg position while the VenaPulse® device is applied. The device is simply designed to replace manual augmentations.

 All accessories are included with purchase from ACI Medical.


 Purchasing

All of ACI Medical’s products are available to the public.

For more information on purchasing, please contact
Lennie Arkans, Vascular Specialist for VenaPulse® device
lenniea@acimedical.com
Phone: (760) 744-4400 ext.311

Venapulse augmentation device display panel and pressure adjustment dial
